Motor
* Two-pole induction motor
* Insulation Class B
* Protection IPX4
* Continuous duty
Operating conditions
* Liquid temperature up to 60°C
* Ambient temperature up to 40°C
* Total suction lift up to 8m
Power
Single phase 220V-240V/50Hz
Single phase 220V/60Hz if request
Pump Installation And Applications
These pumps are suitable for pumping clean water and fluids which are not
chemically aggressive to the pump components.
These pumps are an obvious choice wherever there is a need for high head
values hard to reach with single impeller pumps, all thanks to the following features: extremely high outputs, suitable for continuous and heavy-duty use and particularly adaptable to a wide range of particular applications.
2CP series pumps are extremely reliable,simple to use, quiet and virtually maintenance-free, finding many uses in domestic, civil and industrial applications, the automatic distribution of water from surge tanke, watering gardens increasing the mains supply pressure, feeding boilers, cooling systems and fire-fighting units.
These pumps should be installed in a covered ares; protected areanst the weather
chemically aggressive to the pump components.
These pumps are an obvious choice wherever there is a need for high head
values hard to reach with single impeller pumps, all thanks to the following features: extremely high outputs, suitable for continuous and heavy-duty use and particularly adaptable to a wide range of particular applications.
2CP series pumps are extremely reliable,simple to use, quiet and virtually maintenance-free, finding many uses in domestic, civil and industrial applications, the automatic distribution of water from surge tanke, watering gardens increasing the mains supply pressure, feeding boilers, cooling systems and fire-fighting units.
These pumps should be installed in a covered ares; protected areanst the weather
Major Components and materials
Pump Body:Cast iron
Impeller :Brass/ss
Motor Housing: Aluminium alloy
Wound Stator:100% Copper wire
Shaft: Stainless steel shaft/45# Carbon steel shaft
Fan Cover :Iron

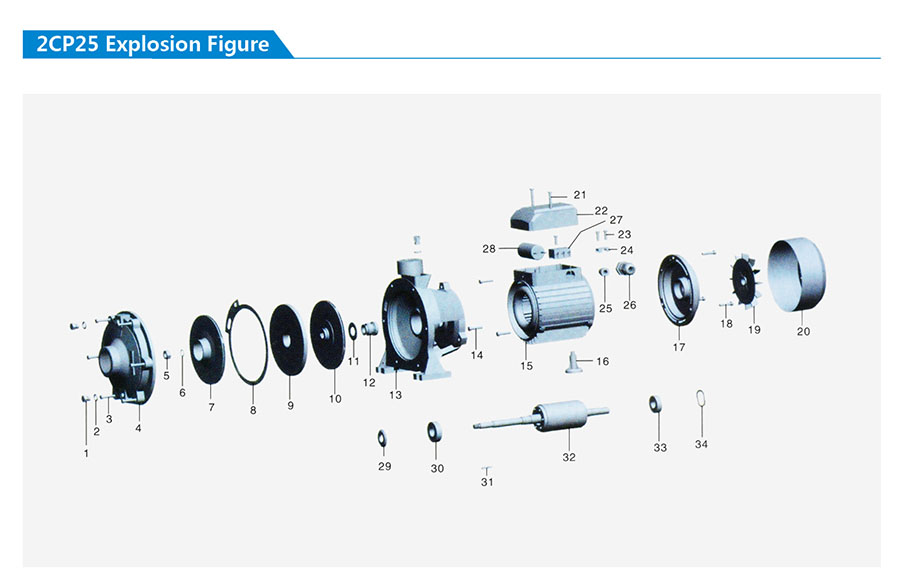

![Image](/images/pump-v/2CP25/3.jpg)

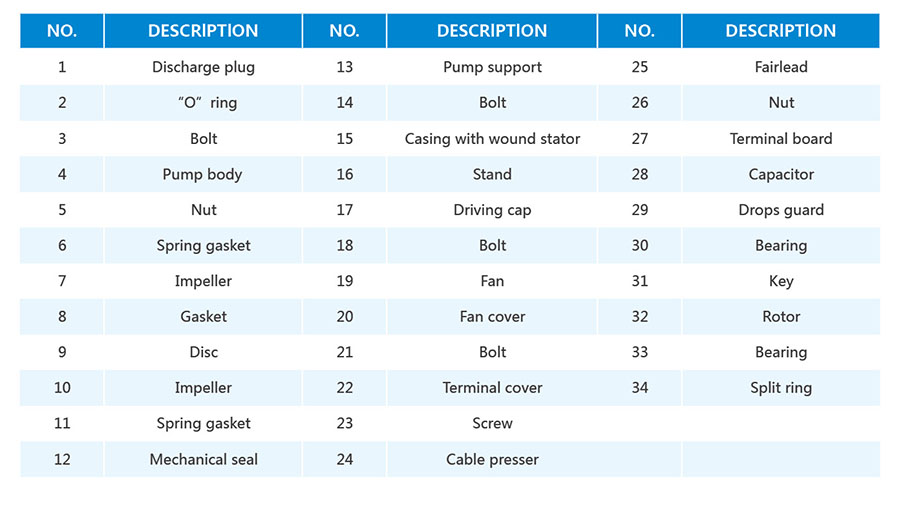

![Image](/images/pump-v/2CP25/4.jpg)

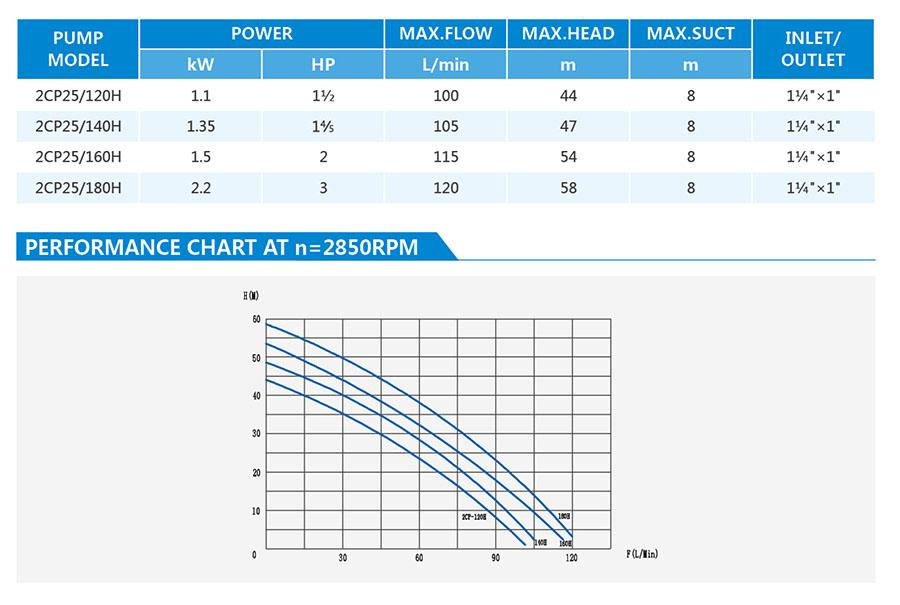

![Image](/images/pump-v/2CP25/5.jpg)
