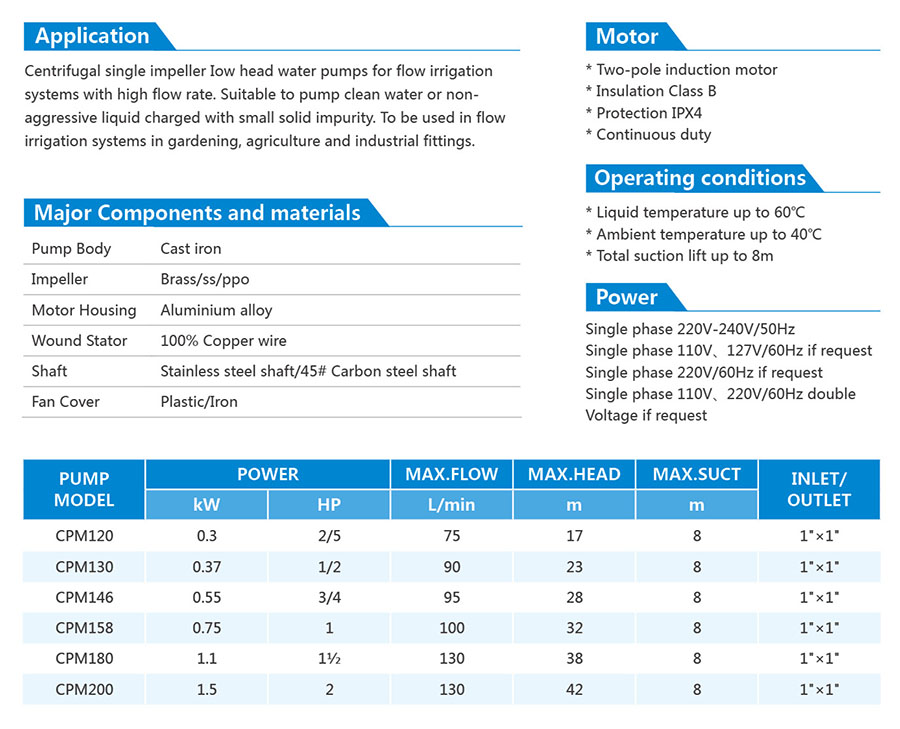

Motor
* Two-pole induction motor
* Insulation Class B
* Protection IPX4
* Continuous duty
Operating conditions
* Liquid temperature up to 60°C
* Ambient temperature up to 40°C
* Total suction lift up to 8m
Power
Single phase 220V-240V/50Hz
Single phase 110V, 127V/60Hz if request
Single phase 220V/60Hz if request
Single phase 110V, 220V/60Hz double
Voltage if request
Application
Centrifugal single impeller low head water pumps for flow irrigation systems with high flow rate. Suitable to pump clean water or non- aggressive liquid charged with small solid impurity. To be used in flow irrigation systems in gardening, agriculture and industrial fittings.

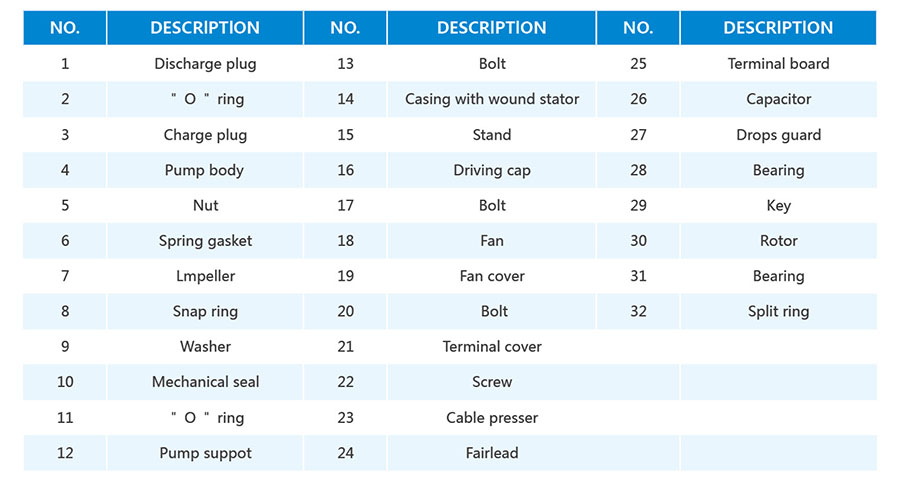

Major Components and materials
Pump Body:Cast iron (electrophoresis/ss insert/copper insert)
Impeller :Brass/ss/ppo
Motor Housing: Aluminium alloy
Wound Stator:100% Copper wire
Shaft: Stainless steel shaft/45# Carbon steel shaft
Fan Cover :Plastic/Iron
![Image](/images/2023/11/04/2-1.jpg)
![Image](/images/pump-v/CM100/3.jpg)
![Image](/images/pump-v/CM100/4.jpg)
![Image](/images/pump-v/CM100/5.jpg)
