Motor
* Two-pole induction motor
* Insulation Class B
* Protection IPX4
* Continuous duty
Operating conditions
* Liquid temperature up to 60°C
* Ambient temperature up to 40°C
* Total suction lift up to 8m
Power
Single phase 220V-240V/50Hz
Single phase 110V, 127V/60Hz if request
Single phase 220V/60Hz if request
Single phase 110V, 220V/60Hz double
Voltage if request
Application
Volumetric water pumps able to offer high pressure in relation to comparatively low powers and which have particularly steady operating curves. They are qualified in domestic fittings, to increase the system pressure in aqueducts and for automatic water distribution by small autoclave tanks or by hydrosphere units. For the correct function of the pump, use clean water or non-aggressive liquid only, without sand or other solid impurity.

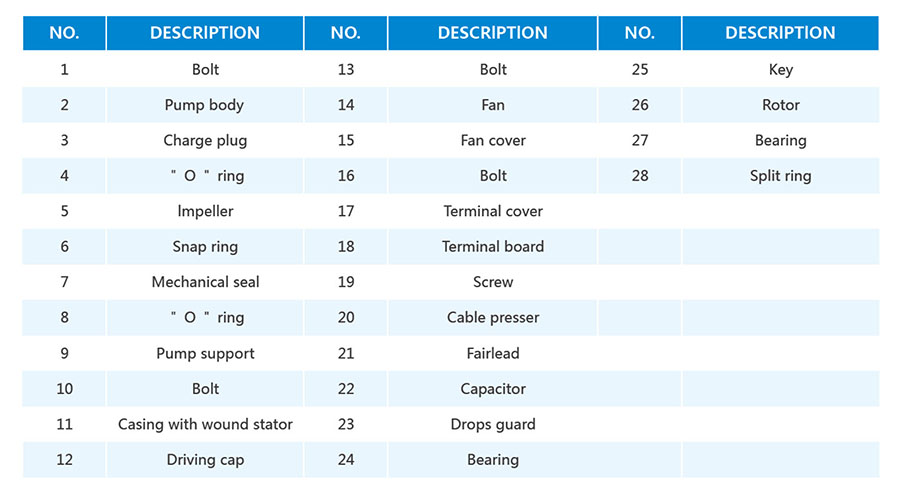

Major Components and materials
Pump Body:Cast iron (electrophoresis/ss insert/copper insert)
Impeller :Brass
Motor Housing: Aluminium alloy
Wound Stator:100% Copper wire/Aluminium wire
Shaft: Stainless steel shaft/45# Carbon steel shaft
Fan Cover :Plastic/Iron
![Image](/images/pump-v/PM45/3.jpg)
![Image](/images/pump-v/PM45/5.jpg)
