Main uses
For 4" wells.
Pumping clear water into: Detached houses
-Country houses and farms-Cottages.
Moving water in fountains.
Rain irrigation.
Feeding pressure systems.
Filling and emptying tanks.
Structure features
Shaft, jacket and hydraulics in stainless steel.
Brass impeller.
Built -in non-return valve.
Thermoplastic parts.
Oil-cooled motor with compensating diaphragm.
Graphite mechanical seal protected by sand proof ring.
4SKm Series parts are non-toxic and non-polluting.
Thanks to special construction features, both installation and
maintenance of 4SKm Series are fast and easy.

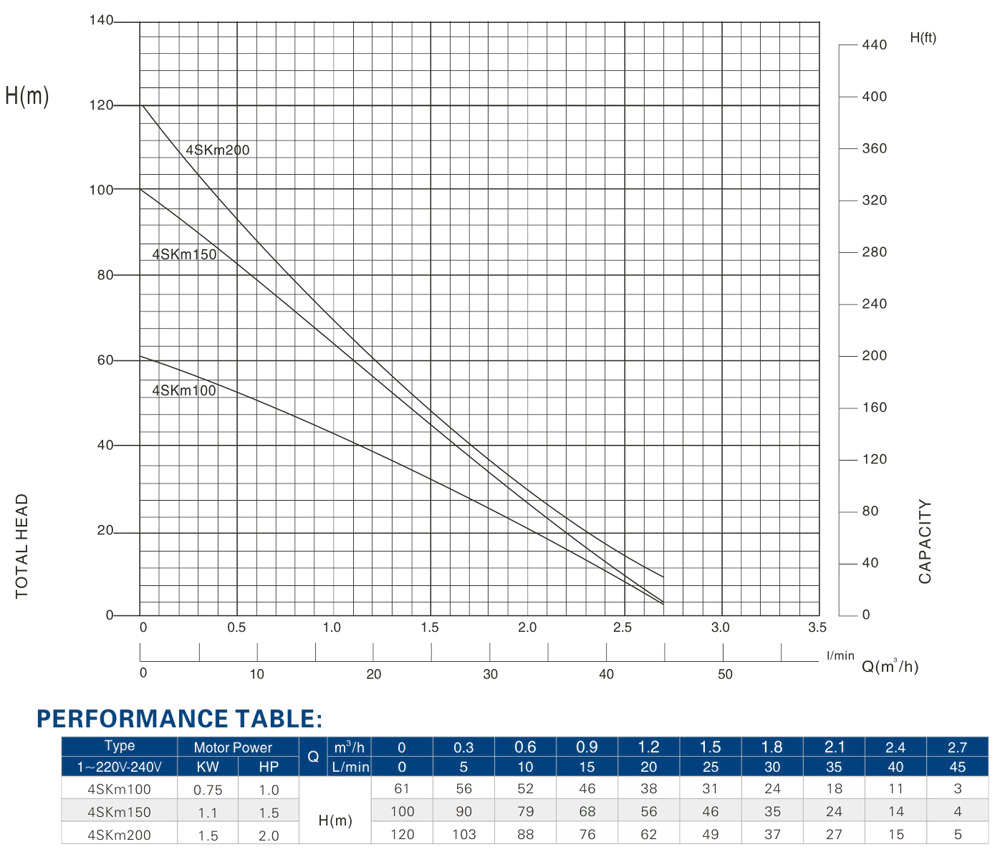

Technical data
Qmax：3.5 (m 3/h)
Capacity from 1to2(m3/h)
Total head from 140 to 3 (m)
Capacity from 1to2(m3/h)
Total head from 140 to 3 (m)
Motor
Continuous service.
Power：
1 to 2Hp (Single phase)
1 to 2Hp (Three phase)
Insulation class： B
Protection grade： IP 68
Maximum diameter：Φ93mm
Highest temperature of liquid：35℃
Power：
1 to 2Hp (Single phase)
1 to 2Hp (Three phase)
Insulation class： B
Protection grade： IP 68
Maximum diameter：Φ93mm
Highest temperature of liquid：35℃
